BASE Function

Converts a number into the supplied base

What is the BASE Function?

The BASE function is available under Mathematical and Trigonometric functions. The function returns a text representation of the calculated value and will convert a number into the supplied base (radix). BASE was introduced in Excel 2013 and is unavailable in earlier versions.



Formula

=BASE(number, radix, [min_length])



The BASE function uses the following arguments:

  1. Number (required argument) – It is the number that we wish to convert. The number should be an integer and greater than or equal to 0 and less than 2^53.
  2. Radix (required argument) – The base radix is what we want to convert the number into. It must be an integer greater than or equal to 2 and less than or equal to 36. Radix is the number of unique digits, including zero, used to represent numbers in a positional numeral system. For example, for the decimal system, the radix is 10, as it uses ten digits from 0 to 9.
  3. Min_length (optional argument) – It is the minimum length of the string returned. If specified, it must be an integer greater than or equal to 0.



How to use the BASE Function in Excel?

To understand the uses of the BASE function, let’s consider a few examples:



Example 1

Suppose we want to convert the number 10 to base 2:



BASE Function

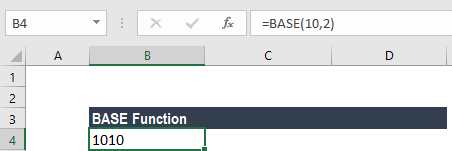

The BASE function will convert the decimal number 10 to base 2 (binary system) and give us the following result:



BASE Function - Example 1

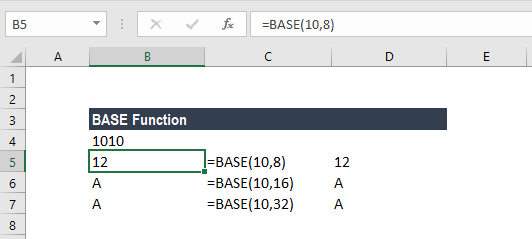

On a similar basis, we can give different radix to get the desired output. Few examples are shown below:



BASE Function - Example 1a



Example 2

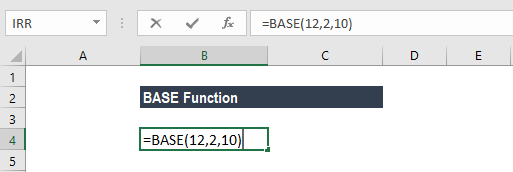

Now, let’s see how this function behaves when we specify a minimum_length argument. Suppose we specify the number 12, with radix 2 and minimum length 10:



BASE Function - Example 2

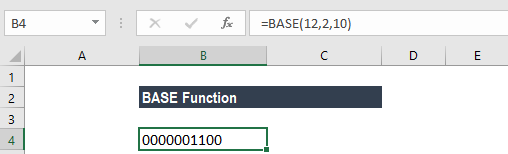

In the example, the function will convert the decimal number 12 to base 2 (binary), with a minimum length of 10. The result would be 0000001100, which is 1100 with 6 leading zeros to make the string 10 characters long.



Few notes about the BASE Function

  1. #VALUE! error – Occurs when the number given is a non-numeric value.
  2. #NUM! error – When any of the argument that is number, radix, or min_length is outside the minimum or maximum constraints. So, the error will occur:
    • When the given number argument is < 0 or is ≥ 2^53.
    • When the given radix argument is < 2 or > 36.
    • When the [min_length] argument is supplied and is < 0 or ≥ 256.
  3. #NAME! error – Occurs when the formula contains an unrecognized value in any of the arguments.
  4. If we enter a non-integer number, the argument is truncated to an integer.
  5. The maximum value of the min_length argument is 255.
  6. If we enter the min_length argument, leading zeros are added to the result if the result would otherwise be shorter than the minimum length specified. For example, BASE(32,2) returns 100000, but BASE(32,2,8) returns 00100000.
  7. The function can also be used by specifying a cell reference. If the cell referred to is empty, it will take the number as zero.

For example, if we give the formula =BASE(A3,2,10), wherein A3 is the cell referred to and is empty. In such scenario, the BASE function will return the following result as A3 is empty.



BASE Function - Notes



Click here to download the sample Excel file
