Binomial Interest Rate Tree

What is the Binomial Interest Rate Tree?

The binomial interest rate tree is a graphical representation of possible interest rate values at different periods of time, under the assumption that at each time period, the interest rate may either increase or decrease with a certain probability. Essentially, the binomial interest rate tree is concerned with the evolution of short-term interest rates.

Uses of the Binomial Interest Rate Tree

Binomial interest rate trees are primarily used to price bonds (including plain-vanilla bonds, callable bonds, and puttable bonds) and various derivatives whose payoffs are linked to the bonds. The concept of the binomial interest tree also has applications in other pricing models, such as the Black-Derman-Toy model.

Generally, the binomial interest rate tree is a simple and easily understandable approach to projecting future interest rates, which can be used to calculate the price of bonds or derivatives. However, the main idea of this model, that the interest rate may either go up or down, may not always properly work in the real world.

How to Create the Binomial Interest Rate Tree?

The rate tree can be created by following these steps:

1. Observe the current interest rate of the relevant security (bond or derivative).
2. Determine the probability of the interest rate either going up or down. In most cases, the risk-neutral probability (i.e., the probability of future outcomes adjusted for risk) is used to calculate the future interest rate. Note that if the probability of the interest rate increase equals p, the probability of the interest rate decrease equals (1-p). In addition, the risk-neutral probability can be used for calculating the future rates in all time periods.
3. Calculate the forward (future) rates using the determined probability.

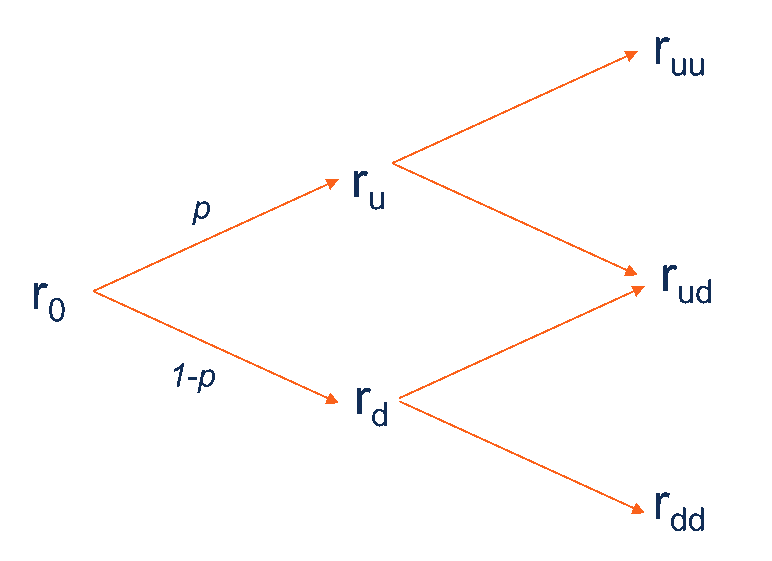

4. Create the binomial tree using the obtained interest rates. The tree should look like the image above (the binomial interest rate tree for two periods).

Note that similar to other binomial trees, with the binomial interest rate tree, the current price of a bond or derivative must be calculated backward. In other words, we must first calculate the prices of security in the latest periods and then calculate the prices in the previous periods.
